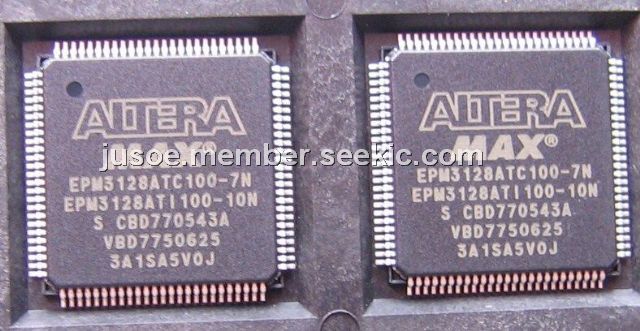

EPM3128ATI100-10N

Product Summary

The EPM3128ATI100-10N is a low–cost, high–performance device based on the Altera MAX architecture. Fabricated with advanced CMOS technology, the EEPROM–based EPM3128ATI100-10N operates with a 3.3-V supply voltage and provide 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 4.5 ns, and counter speeds of up to 227.3 MHz. The EPM3128ATI100-10N in the –4, –5, –6, –7, and –10 speed grades are compatible with the timingrequirements of the PCI Special Interest Group (PCI SIG).

Parametrics

EPM3128ATI100-10N absolute maximum ratings: (1)Supply voltage With respect to ground, VCC: –0.5 to 4.6 V; (2)DC input voltage, VI: –2.0 to 5.75 V; (3)DC output current, per pin, IOUT: –25 to 25 mA; (4)Storage temperature No bias, TSTG: –65 to 150 ℃; (5)Ambient temperature Under bias, TA: –65 to 135 ℃; (6)Junction temperature PQFP and TQFP packages, under bias, TJ: 135℃.

Features

EPM3128ATI100-10N features: (1)High–performance, low–cost CMOS EEPROM–based programmable logic devices (PLDs) built on a MAX architecture; (2)3.3-V in-system programmability (ISP) through the built–in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced pin-locking capability; (3)ISP circuitry compliant with IEEE Std. 1532; (4)Built–in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990; (5)Enhanced ISP features:Enhanced ISP algorithm for faster programming; ISP_Done bit to ensure complete programming; Pull-up resistor on I/O pins during in–system programming; (6)High–density PLDs ranging from 600 to 10,000 usable gates; (7)4.5–ns pin–to–pin logic delays with counter frequencies of up to 227.3 MHz; (8)MultiVoltTM I/O interface enabling the device core to run at 3.3 V, while I/O pins are compatible with 5.0–V, 3.3–V, and 2.5–V logic levels; (9)Pin counts ranging from 44 to 256 in a variety of thin quad flat pack (TQFP), plastic quad flat pack (PQFP), plastic J–lead chip carrier (PLCC), and FineLine BGATM packages; (10)Hot–socketing support; (11)Programmable interconnect array (PIA) continuous routing structure for fast, predictable performance.

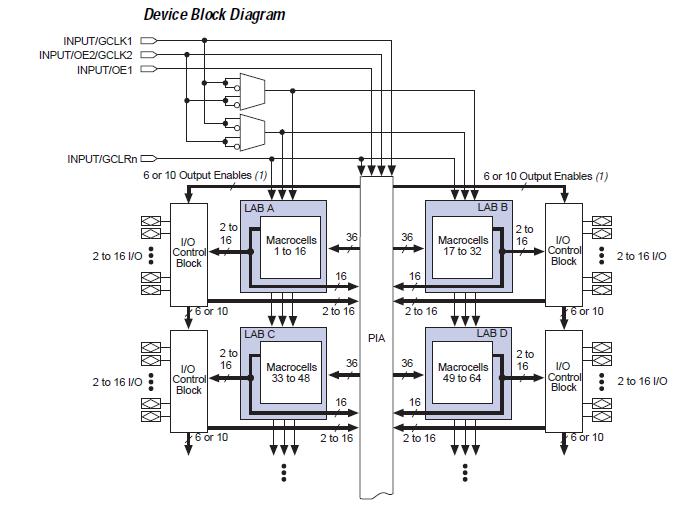

Diagrams
