TVP5158PNPR

Product Summary

The TVP5158PNPR is a 4-channel high-quality NTSC/PAL video decoder that digitize and decode all popular base-band analog video formats into digital video output. Eachchannel of this decoder includes 10-bit 27-MSPS A/D converter (ADC). Preceding each ADC in thedevice, the corresponding analog channel contains an analog circuit that clamps the input to a referencevoltage and applies the gain.Composite input signal is sampled at 2x the ITU-R BT.601 clock frequency, line-locked alignment, and isthen decimated to the 1x pixel rate. CVBS decoding uses five-line adaptive comb filtering for both theluma and chroma data paths to reduce both cross-luma and cross-chroma artifacts. A chroma trap filter isalso available. On CVBS inputs, the user can control video characteristics such as contrast, brightness,saturation, and hue via an I2C host port interface. Furthermore, luma peaking (sharpness) withprogrammable gain is included.

Parametrics

TVP5158PNPR absolute maximum ratings: (1)VDD Supply voltage range: VDDA_3_3 to VSSA_3_3 video decoder ; VDDA_1_8 to VSSA_1_8 -0.2 V to 2.0 V; VDDA_1_1 to VSSA_1_1 -0.2 V to 1.2 V; (2)VI Digital input voltage range: VI to DGND -0.5 V to 4.5 V; (3)VODigital output voltage range: VO to DGND-0.5 V to 4.5 V; (4)Analog video input voltage range: AIN to AGND -0.2 V to 2.5 V; (5)Analog audio input voltage range: AIN to AGND -0.2 V to 2.0 V; (6)Operating free-air temperature rang: Commercial range: 0°C to 70°C; Industrial range-40°C to 85°C; (7)TstgStorage temperature range: -65°C to 150°C.

Features

TVP5158PNPR features: (1)Four separate video decoder channelsstandards and all channels having the following features for each channel: Accepts NTSC (J, M, 4.43) and PAL (B, D,and samplingG, H, I, M, N, Nc, 60) video data; Composite video inputs,Pseudo-differential video inputs to improved noise immunitysyncs; High-speed 10-bit ADC; Fully differential CMOS analog preprocessing channels with clamping; Integrated Anti-Aliasing filter; (2)Four independent scalers support horizontalLine-interleaved modeand/or vertical 2:1 downscaling; (3)Channel multiplexing capabilities with metadata insertion.

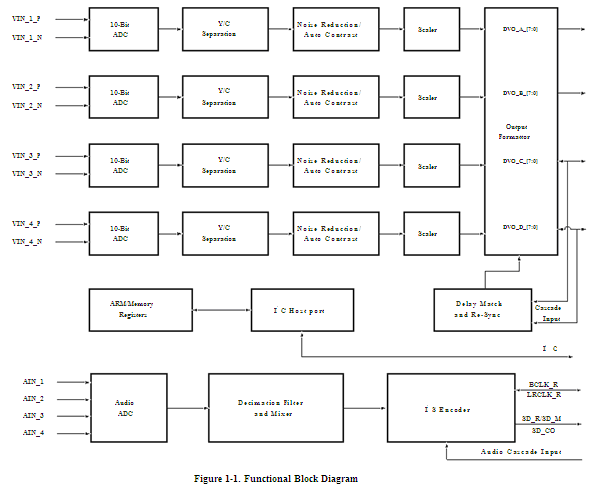

Diagrams
