Product Summary

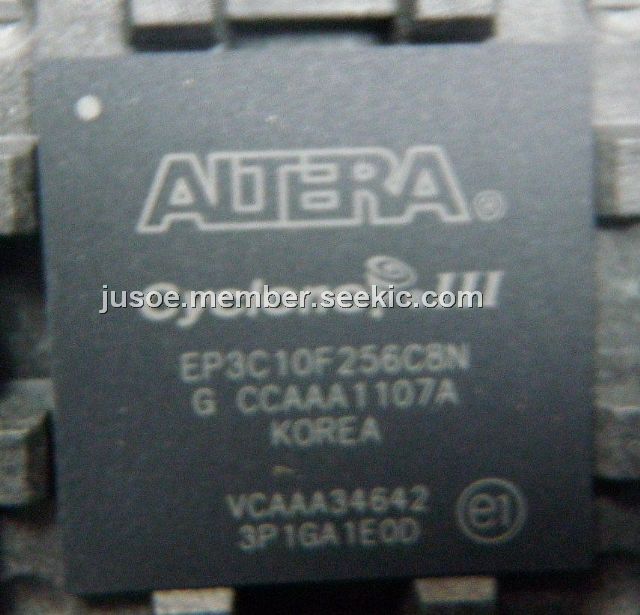

The EP3C10F256C8N is an FPGA. It offers a unique combination of high functionality, low power and low cost. Based on Taiwan Semiconductor Manufacturing Company (TSMC) low-power (LP) process technology, silicon optimizations and software features to minimize power consumption, the EP3C10F256C8N provides the ideal solution for your high-volume, low-power, and cost-sensitive applications.

Parametrics

EP3C10F256C8N absolute maximum ratings: (1)Supply voltage for internal logic:–0.5V to 1.8V; (2)Supply voltage for output buffers:–0.5V to 3.9V; (3)Supply voltage (analog) for phase-locked loop(PLL) regulator:–0.5V to 3.75V; (4)Supply voltage (digital) for PLL:–0.5V to 1.8V; (5)DC input voltage:–0.5V to 3.95V; (6)DC output current, per pin:–25mA to 40mA; (7)Electrostatic discharge voltage using the human body model:±2000V; (8)Electrostatic discharge voltage using the charged device model:±500V; (9)Storage temperature:–65℃ to 150℃; (10)Operating junction temperature:–40℃ to 125℃.

Features

EP3C10F256C8N features: (1)input pin leakage current:-10μA to 10μA; (2)tristated I/O pin leakage current:-10μA to 10μA; (3)VCCINT supply current:1.7mA; (4)VCCA supply current:11.3mA; (5)VCCD_PLL supply current:4.1mA; (6)VCCIO supply current:0.6mA.

Diagrams

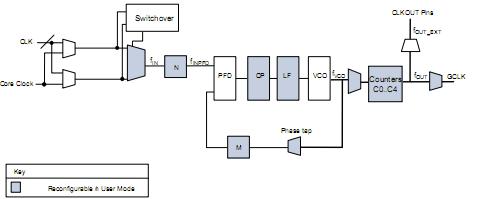

EP3C10F256C8N block diagram
