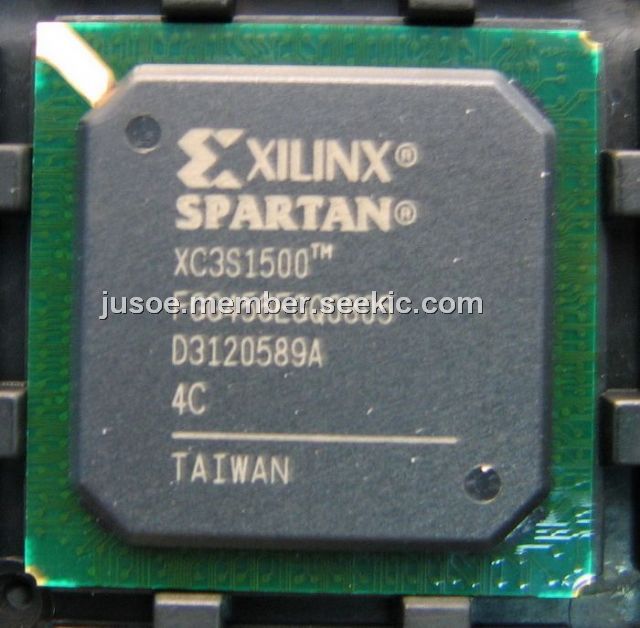

XC3S1500-4FGG456C

Field-Programmable Gate Array, BGA, –0.5 to 1.32 V, XC3S1500-4FGG456C

Rated 5 Rating 5 | reviews | Write a review

Price:: US $30.00~40.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $30.00~40.00

PartNumber:: XC3S1500-4FGG456C

Brand:: Xilinx, Inc - Xilinx | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. fisher's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-04

From Other Seller

Part Number:XC3S1500-4FGG456C
US $30.00 - 40.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The XC3S1500-4FGG456C is a Field-Programmable Gate Array. It is designed to meet the needs of high volume, cost-sensitive consumer electronic applications. It offers densities ranging from 50,000 to five million system gates.

Parametrics

XC3S1500-4FGG456C absolute maximum ratings: (1)VCCINT, Internal supply voltage: –0.5 to 1.32 V; (2)VCCAUX, Auxiliary supply voltage: –0.5 to 3.00 V; (3)VCCO, Output driver supply voltage: –0.5 to 3.75 V; (4)VREF, Input reference voltage: –0.5 to VCCO+0.5 V; (5)TSOL, Soldering temperature: 220℃ max; (6)TSTG, Storage temperature: –65 to 150℃.

Features

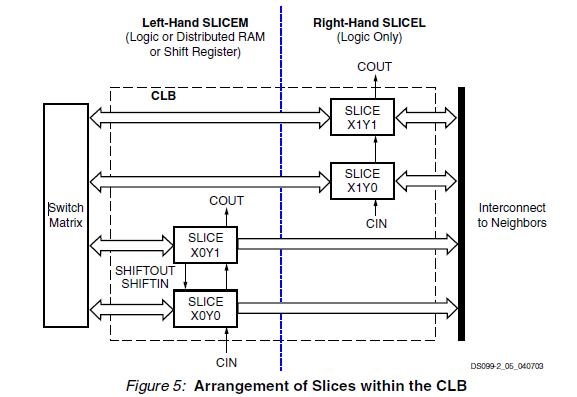

XC3S1500-4FGG456C features: (1)Revolutionary 90-nanometer process technology; (2)Very low cost, high-performance logic solution for high-volume, consumer-oriented applications; (3)Logic resources: Abundant logic cells with shift register capability; Wide multiplexers; Fast look-ahead carry logic; Dedicated 18 x 18 multipliers; JTAG logic compatible with IEEE 1149.1/1532 specifications; (4)Digital Clock Manager (up to four DCMs): Clock skew elimination; Frequency synthesis; High resolution phase shifting; (5)Eight global clock lines and abundant routing; (6)Fully supported by Xilinx ISE development system: Synthesis, mapping, placement and routing; (7)MicroBlaze processor, PCI, and other cores.
