Product Summary

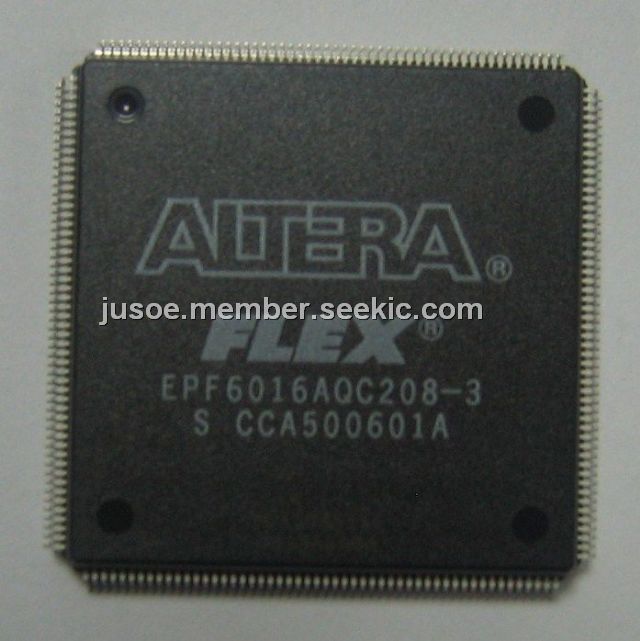

The EPF6016AQC208-3 is a programmable logic device. The Altera EPF6016AQC208-3 programmable logic device (PLD) provides a low-cost alternative to high-volume gate array designs. The EPF6016AQC208-3 is based on the OptiFLEX architecture, which minimizes die size while maintaining high performance and routability. The device has reconfigurable SRAM elements, which gives designers the flexibility to quickly change their designs during prototyping and design testing. Designers can also change functionality during operation via in-circuit reconfiguration. The EPF6016AQC208-3 is reprogrammable, and it is 100% tested prior to shipment. As a result, designers are not required to generate test vectors for fault coverage purposes, allowing them to focus on simulation and design verification. In addition, the designer does not need to manage inventories of different gate array designs the EPF6016AQC208-3 device is configured on the board for the specific functionality required.
Parametrics
EPF6016AQC208-3 absolute maximum ratings: (1)Supply voltage, With respect to ground, VCC:-2.0 to 7.0 V; (2)DC input voltage, With respect to ground, VI: -2.0 to 7.0 V; (3)DC output current, per pin, IOUT: -25 to 25 mA; (4)Storage temperature, No bias, TSTG: -65 to 150 ℃; (5)Ambient temperature, Under bias, TAMB: -65 to 135℃; (6)Junction temperature, PQFP, TQFP, and BGA packages, TJ: 135℃.
Features
EPF6016AQC208-3 features: (1)Register-rich, look-up table- (LUT-) based architecture; (2)OptiFLEX architecture that increases device area efficiency; (3)Typical gates ranging from 5,000 to 24,000 gates (see Table 1); (4)Built-in low-skew clock distribution tree; (5)100% functional testing of all devices; test vectors or scan chains are not required.

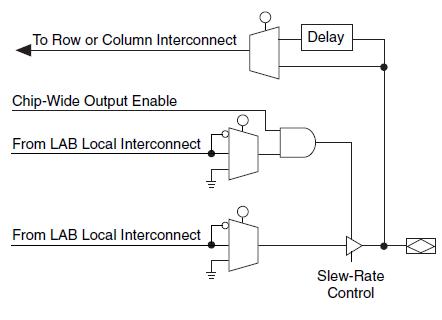

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPF6016AQC208-3 |
|
IC FLEX 6000 FPGA 16K 208-PQFP |
Data Sheet |
|
|
||||||
|
EPF6016AQC208-3N |
|
IC FLEX 6000 FPGA 16K 208-PQFP |
Data Sheet |
|
|
||||||
