XC5VSX35T-2FFG665I

Product Summary

The XC5VSX35T-2FFG665I is an FPGA. It is available in -3, -2, -1 speed grades, with -3 having the highest performance. The DC and AC characteristics of the XC5VSX35T-2FFG665I are specified for both commercial and industrial grades. Except the operating temperature range or unless otherwise noted, all the DC and AC electrical parameters are the same for a particular speed grade (that is, the timing characteristics of a -1 speed grade industrial device are the same as for a -1 speed grade commercial device). However, only selected speed grades and/or devices might be available in the industrial range. All supply voltage and junction temperature specifications of the XC5VSX35T-2FFG665I are representative of worst-case conditions. The parameters included are common to popular designs and typical applications.

Parametrics

XC5VSX35T-2FFG665I absolute maximum ratings: (1)VCCINT, Internal supply voltage relative to GND: –0.5 to 1.1 V; (2)VCCAUX, Auxiliary supply voltage relative to GND: –0.5 to 3.0 V; (3)VCCO, Output drivers supply voltage relative to GND: –0.5 to 3.75 V; (4)VBATT, Key memory battery backup supply: –0.5 to 4.05 V; (5)VREF, Input reference voltage: –0.5 to 3.75 V; (6)VIN, 3.3V I/O input voltage relative to GND: –0.75 to 4.05 V; (7)IIN, Current applied to an I/O pin, powered or unpowered: ±100 mA; (8)VTS, Voltage applied to 3-state 3.3V output: –0.75 to 4.05 V; (9)Voltage applied to 3-state 2.5V or below output: –0.75 to VCCO + 0.5 V; (10)TSTG Storage temperature (ambient): –65 to 150℃; (11)TSOL Maximum soldering temperature: +220℃; (12)TJ Maximum junction temperature: +125℃.

Features

XC5VSX35T-2FFG665I features: (1)available in -3, -2, -1 speed grades; (2)with -3 having the highest performance; (3)DC and AC characteristics are specified for both commercial and industrial grades; (4)Except the operating temperature range or unless otherwise noted, all the DC and AC electrical parameters are the same for a particular speed grade (that is, the timing characteristics of a -1 speed grade industrial device are the same as for a -1 speed grade commercial device); (5)only selected speed grades and/or devices might be available in the industrial range; (6)All supply voltage and junction temperature specifications are representative of worst-case conditions; (7)The parameters included are common to popular designs and typical applications.

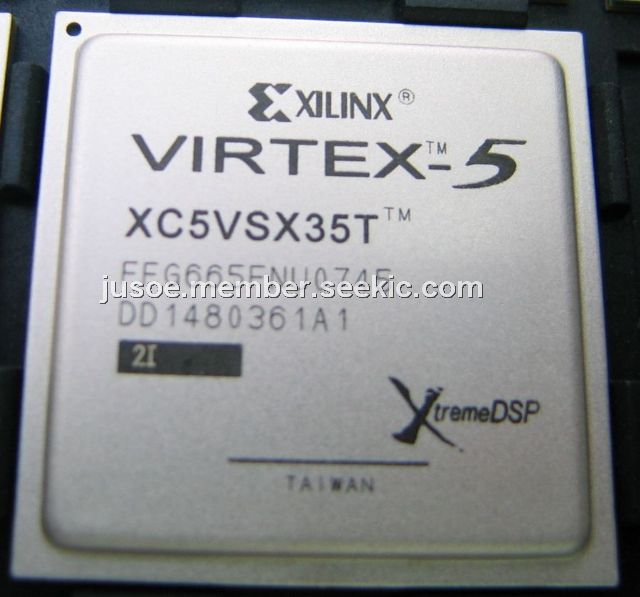

Diagrams
