Product Summary
The XC95288XL-10TQG144I is a High-Performance CPLD. The XC95288XL-10TQG144I is targeted for high-performance, low-voltage applications in leading-edge communications and computing systems, where high device reliability and low power dissipation is important. The XC95288XL-10TQG144I architectural features address the requirements of in-system programmability. Enhanced pin-locking capability avoids costly board rework. In-system programming throughout the full commercial operating range and a high programming endurance rating provide worry-free reconfigurations of system field upgrades. Extended data retention supports longer and more reliable system operating life.
Parametrics
XC95288XL-10TQG144I absolute maximum ratings: (1)VCC, Supply voltage relative to GND: –0.5 to 4.0 V; (2)VIN, Input voltage relative to GND: –0.5 to 5.5 V; (3)VTS, Voltage applied to 3-state output: –0.5 to 5.5 V; (4)TSTG, Storage temperature (ambient): –65 to +150℃; (5)TSO,L Maximum soldering temperature (10s @ 1/16 in. = 1.5 mm): +260℃; (6)TJ, Junction temperature: +150℃.
Features
XC95288XL-10TQG144I features: (1)5 ns pin-to-pin logic delays, with internal system frequency up to 208 MHz; (2)Small footprint packages including VQFPs, TQFPs and CSPs (Chip Scale Package); (3)Pb-free available for all packages; (4)Lower power operation; (5)5V tolerant I/O pins accept 5V, 3.3V, and 2.5V signals; (6)3.3V or 2.5V output capability; (7)Advanced 0.35 micron feature size CMOS FastFLASH technology; (8)In-system programmable; (9)Superior pin-locking and routability with FastCONNECT II. switch matrix; (10)Extra wide 54-input Function Blocks; (11)Up to 90 product-terms per macrocell with individual product-term allocation.

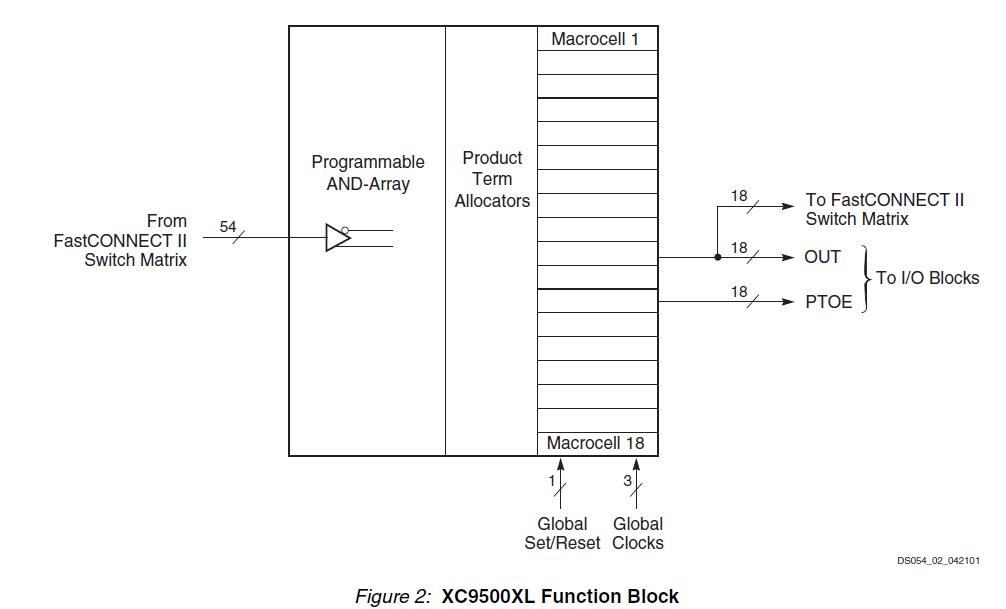

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC95288XL-10TQG144I |
|
IC CPLD 6.4K 288MCELL 144-TQFP |
