RT8268GFP

RT8268GFP, Richtek Technology Corporation, tsop8, converter, 2A, 0.3V to 26V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.40

PartNumber:: RT8268GFP

Brand:: Richtek Technology Corporation - richtek | Pack: TSOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. fisher's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-02

From Other Seller

Part Number:RT8268GFP
US $0.30 - 0.40
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
M27C4001-10F1

US $2.00 - 3.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

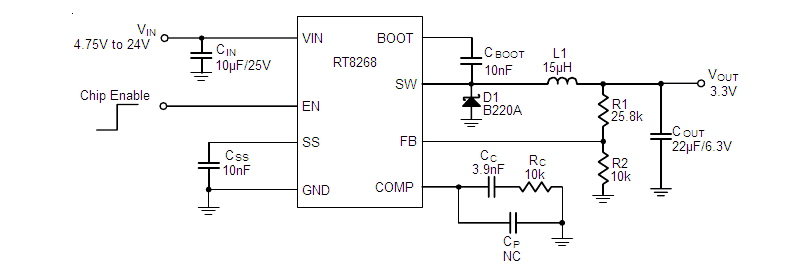

The RT8268GFP is a high voltage buck converter that cansupport the input voltage range from 4.75V to 24V and theoutput current can be up to 2A. Current Mode operationprovides fast transient response and eases loopstabilization. The RT8268GFP also provides adjustable soft-start to be a flexible solution for customers.The chip provides protection functions such as cycle-by-cycle current limiting and thermal shutdown protection.In shutdown mode, the regulator draws 22μA of supplycurrent. The RT8268GFP is available in the SOP-8 andMSOP-10 (Exposed Pad) surface mount package.

Parametrics

RT8268GFP absolute maximum ratings: (1)Supply Voltage, VIN: 0.3V to 26V; (2)Switching Voltage, SW: -0.3V to (Vin+ 0.3V)IN; (3)BOOT Voltage: (Vsw - 0.3V) to (Vsw+ 6V); (4)All Other Voltage: 0.3V to 6V; (5)Power Dissipation, PD@ TA= 25°C SOP-8 0.833W MSOP-10 (Exposed Pad) 1.163W; (6)Package Thermal Resistance (Note 2): SOP-8, θJA 120°C/W MSOP-10 (Exposed Pad), θJA 86°C/W MSOP-10 (Exposed Pad), θJC 30°C/W; (7)Junction Temperature:150°C; (8)Lead Temperature (Soldering, 10 sec.): 260°C; (9)Storage Temperature Range: 65°C to 150°C.

Features

RT8268GFP features: (1)Wide Operating Input Range : 4.75V to 24V; (2)Adjustable Output Voltage Range : 0.92V to 16V; (3)Output Current up to 2A; (4)22μ μ μ μ μ A Low Shutdown Current; (5)Power MOSFET : 0.18Ω ; (6)High Efficiency up to 95%; (7)400kHz Fixed Switching Frequency; (8)Stable with Low ESR Output Ceramic Capacitors; (9)Programmable Soft-Start; (10)Thermal Shutdown ProtectionCycle-By-Cycle Over Current Protection; (11)RoHS Compliant and Halogen Free.
